INDUSTRIAL VALVES & SUBPLATES

INDUSTRIAL VALVES & SUBPLATES

Industrial valves have a wide range of applications throughout a system. Like a directional control valve, these units are typically used for the application of controlling the flow of media throughout a system. However, they are used more frequently in locations where an electronic PLC, switch or button will be used as the purpose of repetitive and consistent actuation. Stackable with flow, relief and pilot operated valves these are the baseline for most larger systems.

Advantages & Technical Features:

Coming in a few varieties to suit common applications where an industrial valve might be used, the following is possible:

  • Open centre, closed centre, motor, double or single acting cylinder actuation spools etc.
  • With or without manual lever override.
  • Stackable with flow, relief, proportional and pilot operated valves.
  • Available with 12V, 24V, 110V, 220/240V solenoids.
  • Suitable for highly repetitive and consistent tasks.
  • Available in different sizes to suit varying flow and pressure requirements.

Applications:

Industrial valves are used in a wide range of applications such as:

  • Controlling flow to ancillary agricultural equipment.
  • Directing the supply of oil to operate functions (such as cylinders or motors) from a powerpack.
  • Under deck equipment on a boat.
  • Functions for cranes, or on heavy mobile plant.
  • Functions on fixed plant, such as plate feeders or thickeners.

Brand Benefit:

We have available premium brands for high value assets and more reasonably priced valves, with good quality for domestic and low impact equipment.

No Product SKU Product preview Product Description Price Action
1 33220024 4WE6HA60/EG220N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - HA Spool - Normally Open - 220V 4WE6HA60/EG220N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - HA Spool - Normally Open - 220V $173.00
2 71121001 Cetop 5 (NG10) - Subplate - Steel - Single - Side 1/2 BSPP Ports Cetop 5 (NG10) - Subplate - Steel - Single - Side 1/2 BSPP Ports $176.50
3 71111003 Cetop 3 (NG6) - Subplate - Steel - Single - Side 3/8 BSPP Ports $128.20
4 71111002 Cetop 3 (NG6) - Subplate - Alloy - Single - Side 3/8 BSPP Ports Cetop 3 (NG6) - Subplate - Alloy - Single - Side 3/8 BSPP Ports $85.90
5 71111001 Cetop 3 (NG6) - Subplate - Alloy - Single - Rear 3/8 BSPP Ports Cetop 3 (NG6) - Subplate - Alloy - Single - Rear 3/8 BSPP Ports $85.90
6 71211006 Cetop 3 (NG6) - Manifold - Two Bank - Series - Alloy - Relief Cavity Cetop 3 (NG6) - Manifold - Two Bank - Series - Alloy - Relief Cavity $216.50
7 71211005 Cetop 3 (NG6) - Manifold - Five Bank - Parallel - Alloy - Relief Cavity Cetop 3 (NG6) - Manifold - Five Bank - Parallel - Alloy - Relief Cavity $404.70
8 71211004 Cetop 3 (NG6) - Manifold - Four Bank - Parallel - Alloy - Relief Cavity Cetop 3 (NG6) - Manifold - Four Bank - Parallel - Alloy - Relief Cavity $335.30
9 71211003 Cetop 3 (NG6) - Manifold - Three Bank - Parallel - Alloy - Relief Cavity Cetop 3 (NG6) - Manifold - Three Bank - Parallel - Alloy - Relief Cavity $265.90
10 71211002 Cetop 3 (NG6) - Manifold - Two Bank - Parallel - Alloy - Relief Cavity Cetop 3 (NG6) - Manifold - Two Bank - Parallel - Alloy - Relief Cavity $196.50
11 71211001 Cetop 3 (NG6) - Manifold - Single Bank - Alloy - Relief Cavity Cetop 3 (NG6) - Manifold - Single Bank - Alloy - Relief Cavity $136.50
12 71320001 Cetop 5 (NG10) - Blanking Plate - All Ports Blocked Cetop 5 (NG10) - Blanking Plate - All Ports Blocked $62.40
13 71310001 Cetop 3 (NG6) - Blanking Plate - All Ports Blocked Cetop 3 (NG6) - Blanking Plate - All Ports Blocked $45.90
14 71411007 TCV-02M-W-O-30-S - Cetop 3 (NG6) - Modular Flow Out TCV-02M-W-O-30-S - Cetop 3 (NG6) - Modular Flow Out $173.00
15 71411006 TCV-02M-W-I-30-S - Cetop 3 (NG6) - Modular Flow In TCV-02M-W-I-30-S - Cetop 3 (NG6) - Modular Flow In $173.00
16 71411005 PCV-03M-W-05-30-S - Cetop 5 (NG10) - Modular Lock - Lock On A & B - 70lpm PCV-03M-W-05-30-S - Cetop 5 (NG10) - Modular Lock - Lock On A & B - 70lpm $214.00
17 71411004 PCV-02M-W-05-40-S - Cetop 3 (NG6) - Modular Lock - Lock On A & B - 35lpm PCV-02M-W-05-40-S - Cetop 3 (NG6) - Modular Lock - Lock On A & B - 35lpm $204.00
18 71411003 PCV-02M-A-05-40-S - Cetop 3 (NG6) - Modular Lock - Lock On A PCV-02M-A-05-40-S - Cetop 3 (NG6) - Modular Lock - Lock On A $173.00
19 71411002 BRV-02M-P-2-B-30-S - Cetop 3 (NG6) - Modular Reducer On P - 35-140 Bar BRV-02M-P-2-B-30-S - Cetop 3 (NG6) - Modular Reducer On P - 35-140 Bar $173.00
20 71411001 BRV-02M-P-1-B-30-S - Cetop 3 (NG6) - Modular Reducer On P - 7-70 Bar BRV-02M-P-1-B-30-S - Cetop 3 (NG6) - Modular Reducer On P - 7-70 Bar $173.00
21 33210026 4WE6J60/EG24N9K4Z5LS - Cetop 3 (NG6)-2 Pos - J Spool - Float Centre - 24V 4WE6J60/EG24N9K4Z5LS - Cetop 3 (NG6)-2 Pos - J Spool - Float Centre - 24V $253.00
22 33210027 4WE6J60/EG220N9K4Z5LS - Cetop 3 (NG6)-2 Pos - J Spool - Float Centre - 220V 4WE6J60/EG220N9K4Z5LS - Cetop 3 (NG6)-2 Pos - J Spool - Float Centre - 220V $253.00
23 33210025 4WE6J60/EG12N9K4Z5LS - Cetop 3 (NG6)-2 Pos - J Spool - Float Centre - 12V 4WE6J60/EG12N9K4Z5LS - Cetop 3 (NG6)-2 Pos - J Spool - Float Centre - 12V $253.00
24 33210023 4WE6HA60/EG24N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - HA Spool - Normally Open - 24V 4WE6HA60/EG24N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - HA Spool - Normally Open - 24V $173.00
25 33210024 4WE6HA60/EG220N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - HA Spool - Normally Open - 220V 4WE6HA60/EG220N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - HA Spool - Normally Open - 220V $173.00
26 33210022 4WE6HA60/EG12N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - HA Spool - Normally Open - 12V 4WE6HA60/EG12N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - HA Spool - Normally Open - 12V $173.00
27 33210020 4WE6H60/EG24N9K4Z5LS - Cetop 3 (NG6) - 3 Pos - H Spool - Open Center - 24V 4WE6H60/EG24N9K4Z5LS - Cetop 3 (NG6) - 3 Pos - H Spool - Open Center - 24V $253.00
28 33210021 4WE6H60/EG220N9K4Z5LS - Cetop 3 (NG6) - 3 Pos - H Spool - Open Center - 220V 4WE6H60/EG220N9K4Z5LS - Cetop 3 (NG6) - 3 Pos - H Spool - Open Center - 220V $253.00
29 33210019 4WE6H60/EG12N9K4Z5LS - Cetop 3 (NG6) - 3 Pos - H Spool - Open Center - 12V 4WE6H60/EG12N9K4Z5LS - Cetop 3 (NG6) - 3 Pos - H Spool - Open Center - 12V $253.00
30 33210017 4WE6GA60/EG24N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - GA Spool - P to T Normally Open - A & B Closed - 24V 4WE6GA60/EG24N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - GA Spool - P to T Normally Open - A & B Closed - 24V $173.00
31 33210018 4WE6GA60/EG220N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - GA Spool - P to T Normally Open - A & B Closed - 220V 4WE6GA60/EG220N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - GA Spool - P to T Normally Open - A & B Closed - 220V $173.00
32 33210016 4WE6GA60/EG12N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - GA Spool - P to T Normally Open - A & B Closed - 12V 4WE6GA60/EG12N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - GA Spool - P to T Normally Open - A & B Closed - 12V $173.00
33 33210014 4WE6G60/EG24N9K4Z5LS - Cetop 3 (NG6) - 3 Pos-G Spool - Tandem Centre - 24V 4WE6G60/EG24N9K4Z5LS - Cetop 3 (NG6) - 3 Pos-G Spool - Tandem Centre - 24V $253.00
34 33210015 4WE6G60/EG220N9K4Z5LS - Cetop 3 (NG6) - 3 Pos-G Spool - Tandem Centre - 220V 4WE6G60/EG220N9K4Z5LS - Cetop 3 (NG6) - 3 Pos-G Spool - Tandem Centre - 220V $253.00
35 33210013 4WE6G60/EG12N9K4Z5LS - Cetop 3 (NG6) - 3 Pos-G Spool - Tandem Centre - 12V 4WE6G60/EG12N9K4Z5LS - Cetop 3 (NG6) - 3 Pos-G Spool - Tandem Centre - 12V $253.00
36 33210011 4WE6EA60/EG24N9K4Z5LS - Cetop 3 (NG6) - 3 Pos - EA Spool - Normally Closed - 24V 4WE6EA60/EG24N9K4Z5LS - Cetop 3 (NG6) - 3 Pos - EA Spool - Normally Closed - 24V $173.00
37 33210012 4WE6EA60/EG220N9K4Z5LS - Cetop 3 (NG6) - 3 Pos - EA Spool - Normally Closed - 220V 4WE6EA60/EG220N9K4Z5LS - Cetop 3 (NG6) - 3 Pos - EA Spool - Normally Closed - 220V $173.00
38 33210010 4WE6EA60/EG12N9K4Z5LS - Cetop 3 (NG6) - 3 Pos - EA Spool - Normally Closed - 12V 4WE6EA60/EG12N9K4Z5LS - Cetop 3 (NG6) - 3 Pos - EA Spool - Normally Closed - 12V $173.00
39 33210008 4WE6E60/EG24N9K4Z5LS - Cetop 3 (NG6) - 3 Pos-E Spool - Closed Centre - 24V 4WE6E60/EG24N9K4Z5LS - Cetop 3 (NG6) - 3 Pos-E Spool - Closed Centre - 24V $253.00
40 33210009 4WE6E60/EG220N9K4Z5LS - Cetop 3 (NG6) - 3 Pos-E Spool - Closed Centre - 220V 4WE6E60/EG220N9K4Z5LS - Cetop 3 (NG6) - 3 Pos-E Spool - Closed Centre - 220V $253.00

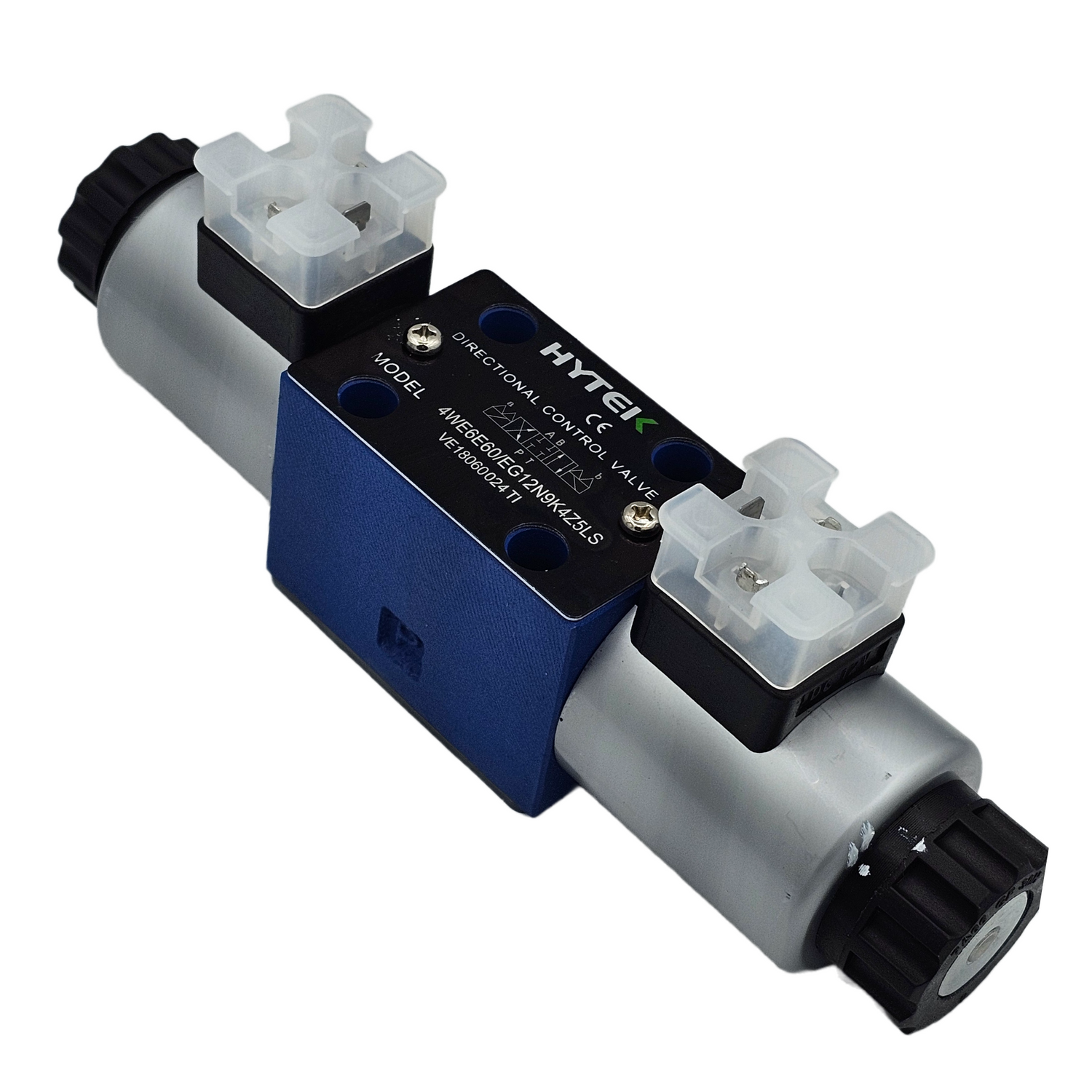

41 33210007 4WE6E60/EG12N9K4Z5LS - Cetop 3 (NG6) - 3 Pos-E Spool - Closed Centre - 12V 4WE6E60/EG12N9K4Z5LS - Cetop 3 (NG6) - 3 Pos-E Spool - Closed Centre - 12V $253.00
42 33210005 4WE6D60/EG24N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - D Spool - Closed Transition - 24V 4WE6D60/EG24N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - D Spool - Closed Transition - 24V $173.00
43 33210006 4WE6D60/EG220N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - D Spool - Closed Transition - 220V 4WE6D60/EG220N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - D Spool - Closed Transition - 220V $173.00
44 33210004 4WE6D60/EG12N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - D Spool - Closed Transition - 12V 4WE6D60/EG12N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - D Spool - Closed Transition - 12V $173.00
45 33210002 4WE6C60/EG24N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - C Spool - Open Transition - 24V 4WE6C60/EG24N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - C Spool - Open Transition - 24V $173.00
46 33210003 4WE6C60/EG220N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - C Spool - Open Transition - 220V 4WE6C60/EG220N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - C Spool - Open Transition - 220V $173.00
47 33210001 4WE6C60/EG12N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - C Spool - Open Transition - 12V 4WE6C60/EG12N9K4Z5LS - Cetop 3 (NG6) - 2 Pos - C Spool - Open Transition - 12V $173.00
'
