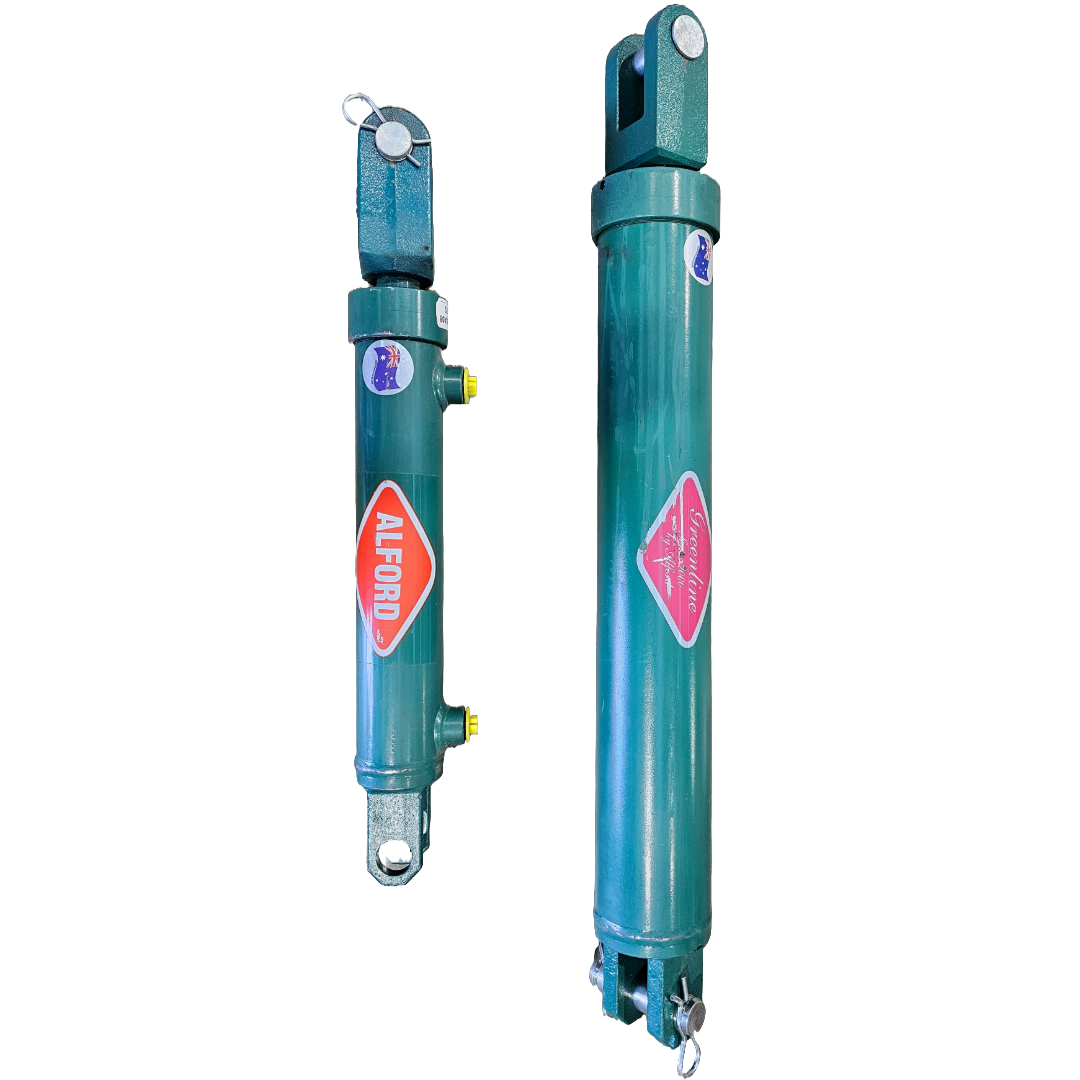

Cylinders are widely used throughout the agricultural, industrial and mining industries. Selecting the right one for the application, so it gives trouble free operation throughout its life is a critical decision. Cylinders are typically used in double acting, single acting, phasing and sequenced applications.

Single acting applications – Typically where the cylinder will retract under its own weight. Such as clamping, positioning, and lifting (House jacking).

Double acting applications – Push and Pull applications where the cylinder will be actuated in both directions. Usually in material handling, industrial automation, and on construction machinery.

Phasing applications – Similar to sequence and double acting cylinders. Phasing cylinders are designed to lift a load in a synchronised movement with other similar cylinders. This is commonly seen on airseeding equipment and applications were lifting heavy objects evenly is required.

Sequenced applications – Though not a specific type of cylinder. This application is where a combination of cylinders and relief valves may be utilised to create a staged actuation. For instance, where a double acting cylinder reaches end of stroke it will then actuate the next cylinder. Think lifting a heavy load and then locking a cylinder in place to prevent further movement.

Advantages:

• Extension and retraction rates and depths can be configured.
• Various load ratings can be accounted for.
• Port size requirements can be addressed using fittings.
• Multiple closed centre, strokes, rod sizes, bore sizes and pin size options can be accounted for.

Applications & technical features:

• Crane booms
• Heavy mobile plant
• Agricultural equipment (air seeders, sprayers, combine harvesters etc.)
• Drill rigs
• House jacking
• Log splitters

Brand Benefit:

We can supply a wide range of hydraulic cylinders in all the mentioned formats.

If we don’t stock it we can generally source it.

Getting the most out of your enquiry:

To assist best with this enquiry the following information should be considered.

• Extension and retraction rate required
• Load rating
• Port size requirements
• Closed centers
• Stroke
• Rod size
• Bore size
• Pin size

If you have any questions please send us an enquiry and we'll be happy to talk you through it.
